Various connection scenarios for customer environments
CloudHub network

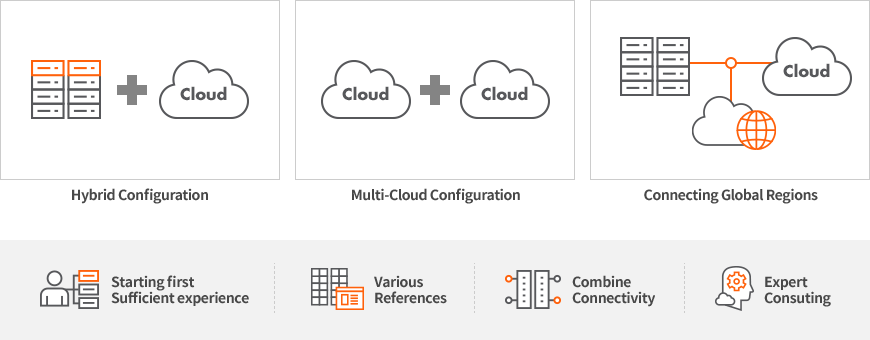

CloudHub has the most experiences and references in Korea in building hybrid clouds, multi-clouds, and global networks. We propose a connection model to suit to the customer's need and environment by combining various connectivity.
![](/images/service_cloudhub_scena_img07_en.png)

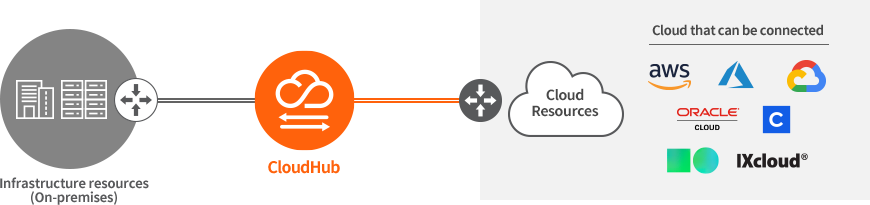

Connecting hybrid clouds
Connect on-premises and cloud resources in a dedicated network through CloudHub. Since Cloudhub guarantees a constant transmission rate (latency) and bandwidth, it can perform important data transmission and migration stably. CloudHub's virtual routers enables you to configure BGP without a physical router, in addition to providing managed service of professional engineer.
![](/images/service_cloudhub_scena_img02_en.png)

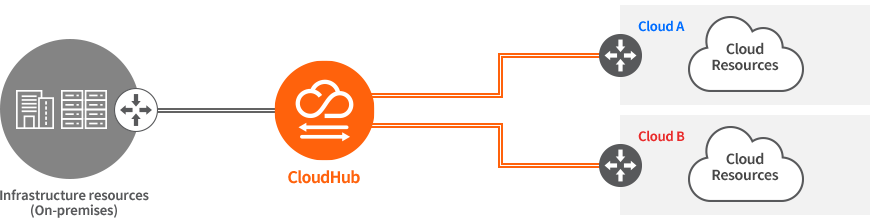

Connecting multi-clouds
Connect two or more public cloud resources, even on-premises with dedicated networks through CloudHub. Multiple cloud resources can be connected and managed for high-performance, large-capacity data management or DR (Disaster Recovery). CloudHub User portal provides Information, usage status, statistics, and alarms for lines that are connected in the CloudHub.
![](/images/service_cloudhub_scena_img03_en.png)

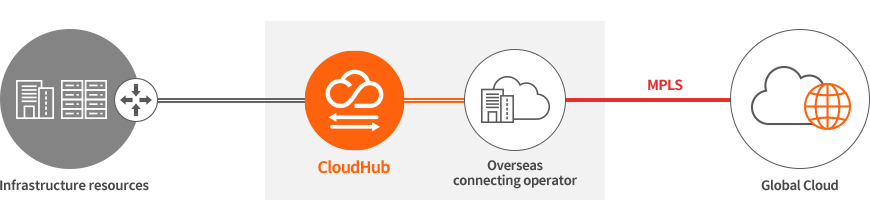

Connecting global clouds
The global clouds can be connected through overseas circuit providers that are connected to CloudHub. Using a dedicated network, high transmission quality, security and performance can be guaranteed, and connection delay time between countries can be minimized.
![](/images/service_cloudhub_scena_img04_en.png)

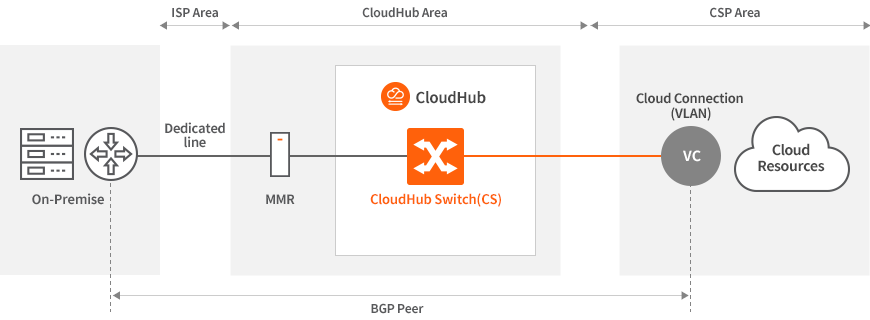

Connection using CloudHub switches
A Layer 2 network connection can be made through a CloudHub high-performance switch between on-premises and cloud resources. After selecting the cloud switch (CS) port, a connection (VLAN) to connect to the cloud can be created.
![](/images/service_cloudhub_scena_img05_en.png)

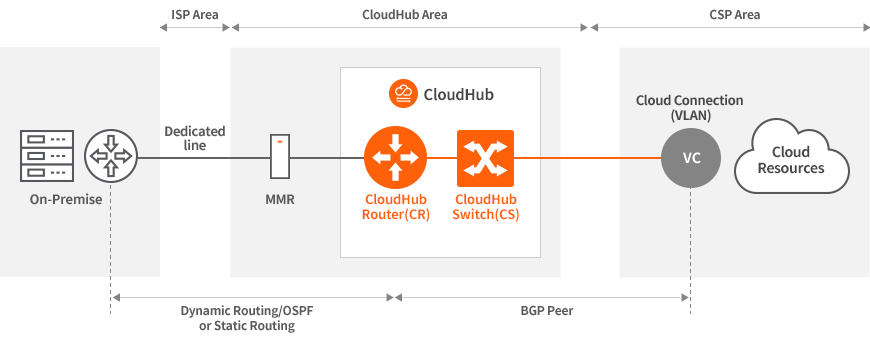

Connection using CloudHub routers
A Layer 3 network connection can be made through a CloudHub Virtual Router (VRF) between on-premises and cloud resources. After selecting a cloud router (CR) port, a connection (BGP section) can be created to connect to the clouds, and communication can be made between different networks (Static Routing or Dynamic Routing).
![](/images/service_cloudhub_scena_img06_en.png)
