K-Clean Filtering DDoS Attacks Using 500G Peering Network

Information

  • In the event of a DDoS attack, the traffic is redirected by K-Clean using the GRE tunneling technology for a filtering process, and only normal traffic is delivered to the original PoP.

  • This is recommended to companies operating servers above a certain scale.

Request Consultation

Features

  • Network bypass service using tunneling instead of proxy redirection
  • Possible to directly block attacks from the IP address of the origin site
  • Pre-configuration of the GRE tunnel and maintenance of the settings during normal time
    (requires equipment supporting the GRE tunneling function)
  • Notification of network bypass using GRE tunnel in the event of an attack

Configuration Diagram and Method of Use

1. GRE tunnel using fixed IP addresses such as a serial number
2. External notification from target network band (BGP or Static) shelter in the event of an attack
3. Purification of the attack traffic entering the shelter through a two-step filtering process
4. Forwarding of purified service traffic to the customer’s server using the GRE tunnel

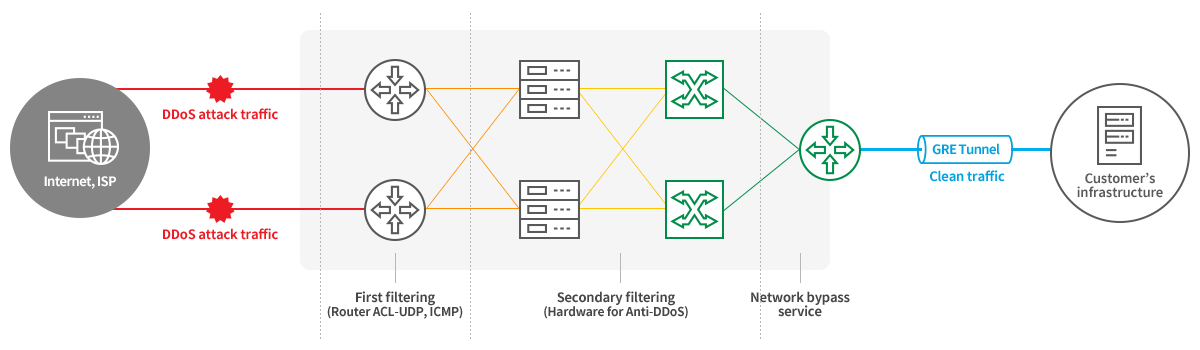

K-CLEAN GRE Configuration Diagram
* It is necessary for DDoS circuit providers to allow IP range of third party operators and BGP secondary AS.
* It is necessary for the network equipment to provide the GRE protocol function.

Functions by Product

Product SOS Anti-DDoS GRE Circuit
Product Details

· Defense based on domain delegation

· L7 caching function

· WEB Service

· UDP/ICMP 10G

· Defense against TCP attacks (10G)

· Blocking overseas attacks

· Global service (Option)

· Addition of domains

· Installation of customer’s servers in the K-Clean Zone

· UDP/ICMP 10G

· Defense against TCP attacks (10G)

· Detection and blocking of abnormal packets

· Guaranteed server speed of 1Gbit/sec

· Application of the GRE Protocol

· Network bypass service

· Defense against direct attacks from IP addresses

· Notification for bypassing of the GRE tunnel

· Direct connection with the DDoS interconnection network

· Approval of application of customer’s own DDoS solution

· Non-controlled for up to 100G

· Traffic guaranteed
ICMP, UDP Filtering ○ ○ ○ ○
Blocking of abnormal IP packets ○ ○ ○
Blocking of abnormal TCP packets ○ ○ ○
Blocking of abnormal UDP packets ○ ○ ○
Blocking of abnormal ICMP packets ○ ○ ○
Blocking of LAND attack packets ○ ○ ○
Defense against UDP flooding ○ ○ ○
Defense against ICMP flooding ○ ○ ○
SYN Flooding ○ ○ ○
TCP Flooding ○ ○ ○
HTTP Flooding ○ ○ ○
Defense against Fragment Flooding ○ ○ ○
L7 pattern check ○ ○ ○
Defense against spoofed IP addresses ○ ○ ○
Defense against DRDoS ○ ○ ○
URL Behavior Anomaly ○ ○ ○
Caching Behavior Anomaly ○ ○ ○
DNS Query Flooding ○ ○ ○
Defense against DNS Amplification attack ○ ○ ○
Defense against SYN flooding ○ ○ ○
Blocking of abnormal IP addresses ○ ○ ○
Improved SSL performance (SSL offload) ○
HTTP acceleration and optimization (compression, cache, TCP reuse) ○
Load Balancing ○
Health Monitoring ○
GRE Tunneling ○
Full subnet protection without changes to the IP address (using BGP) ○
* If maintaining service quality is difficult, an upstream provider may take a preemptive action to ensure stability of its service.
